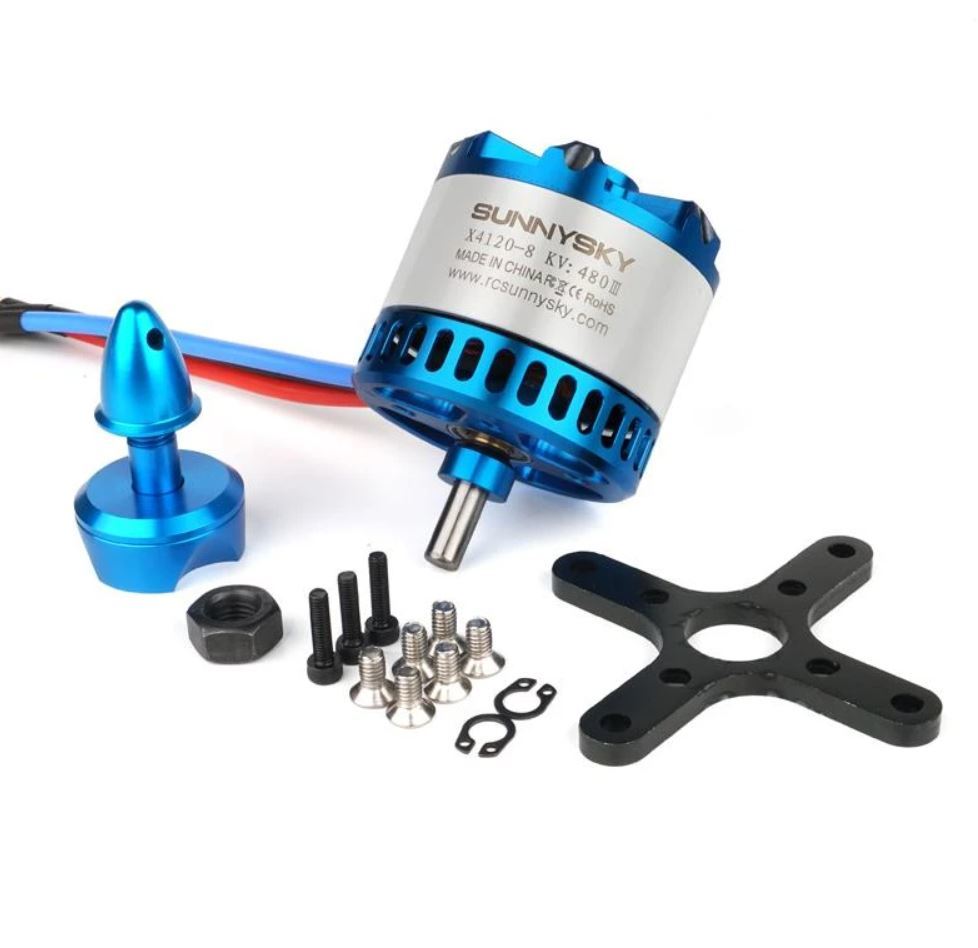

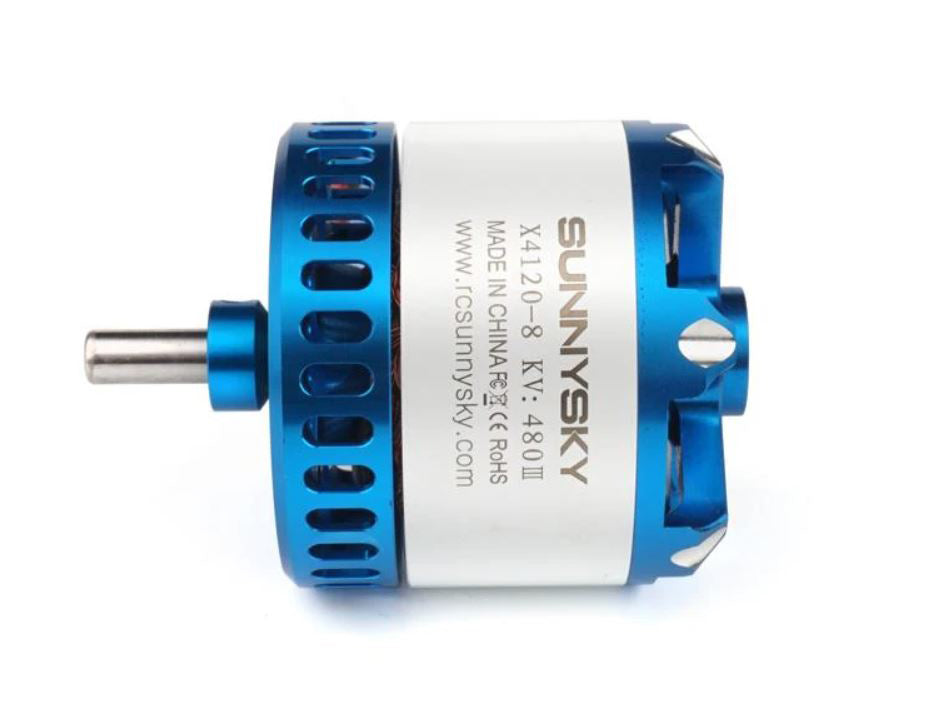

SunnySky X Series X4120 V3 Brushless Motors

Elevate your RC aircraft and drone performance with the SunnySky X Series V3 X4120 550KV Brushless Motor. Renowned for its efficiency and power, this motor is an ideal choice for enthusiasts seeking optimal thrust and reliability in their UAVs, RC planes, and drones.

Key Features:

• High Efficiency: The V3 series boasts up to 20% more efficiency compared to previous models, ensuring longer flight times and better energy utilization.
• Enhanced Power: Experience approximately 25-30% more power, providing the thrust needed for dynamic aerial maneuvers.
• Robust Construction: Designed with a 41mm stator diameter and 20mm stator thickness, this motor ensures durability and consistent performance.

  KV480

  Stator Diameter	41mm	Rotor Diameter	49.7mm
  Stator Thickness	20mm	Body Length	49mm
  No.of Stator Slots	12	Max Lipo Cell	6S
  No.of Rotor Poles	14	ESC	100A
  Motor Kv	480	Recommended Prop(inch)	6S(EOLO15*8/15*10/16*8)
  No-load current	1.5A/10V
  Motor Resistance	22.5mΩ
  Max Continuous Current	97A/30s
  Max Continuous Power	2425W
  Weight	292g
