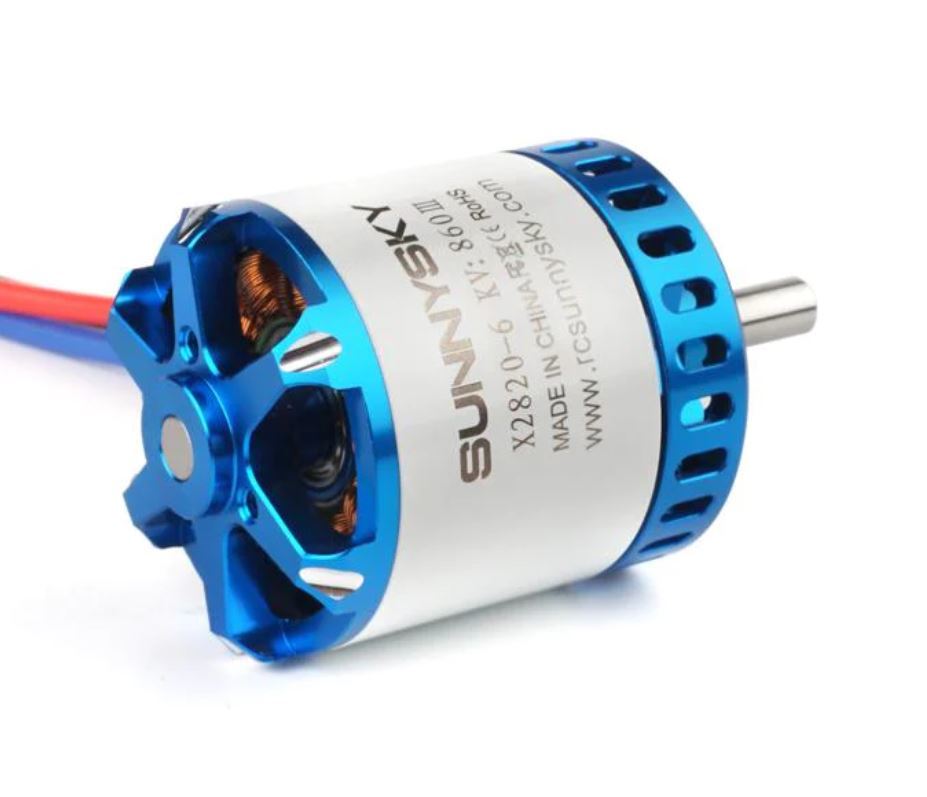

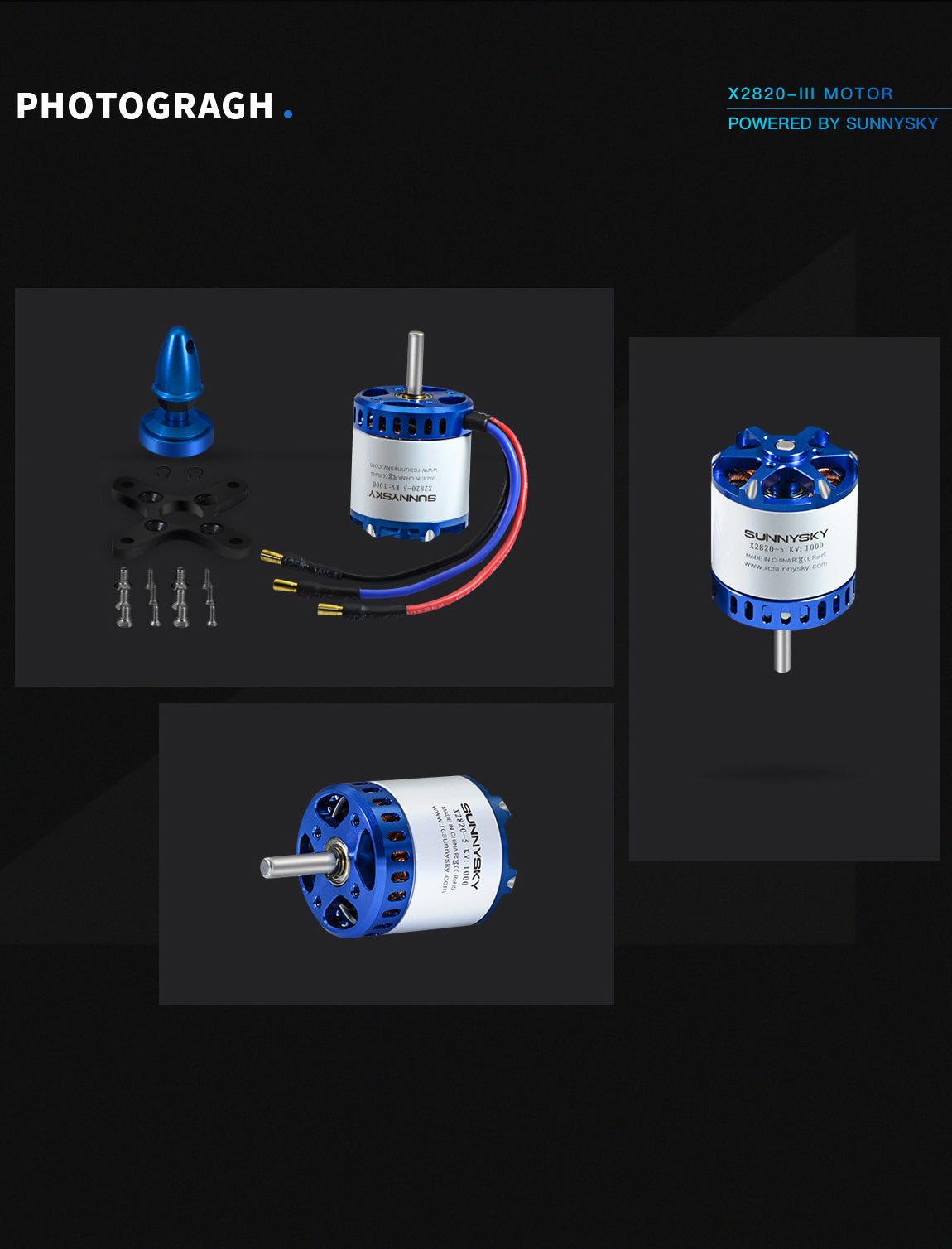

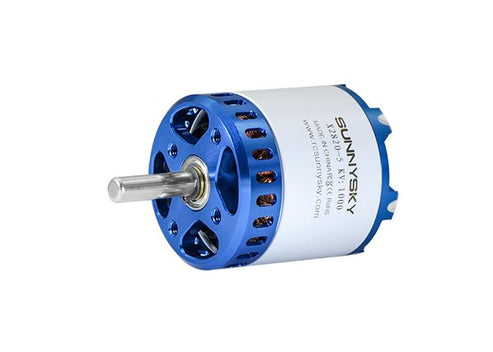

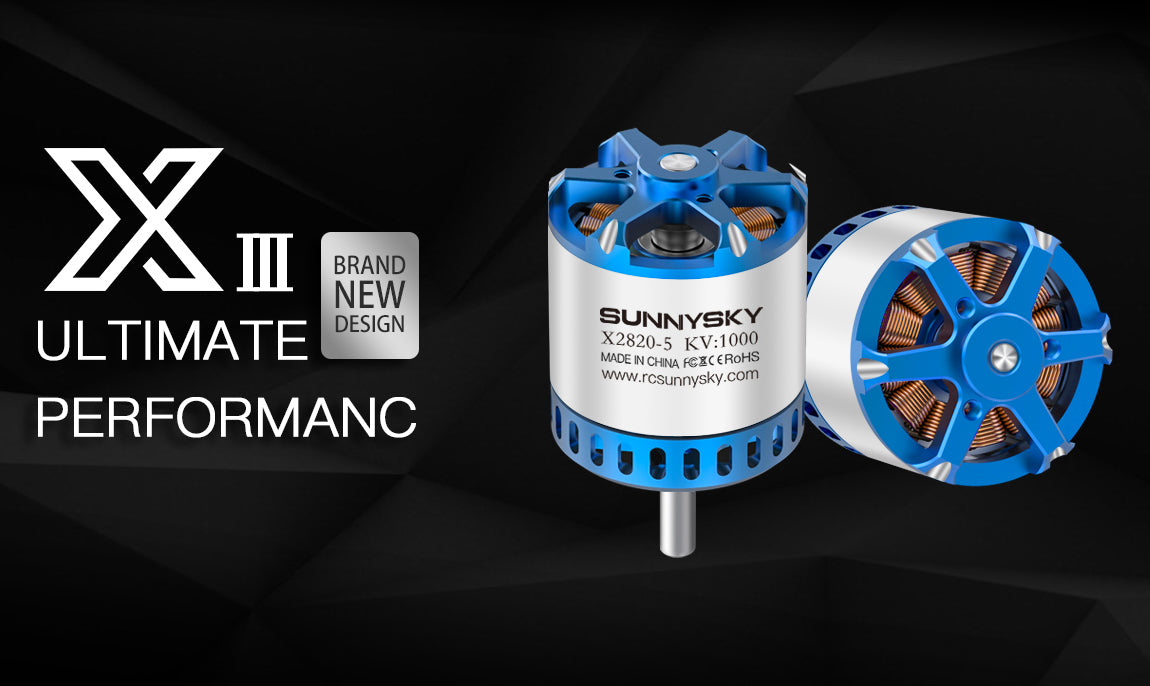

SunnySky X Series X2820-1000kv V3 Brushless Motor
SunnySky X Series X2820-1000kv V3 Brushless Motor
Regular price
$45.00
Regular price
Sale price
$45.00
Quantity
Couldn't load pickup availability
The SunnySky X Series V3 X2820 Brushless Motor 1000KV is engineered for high-performance fixed-wing aircraft and multirotor UAVs. With a stator diameter of 28mm and a stator thickness of 20mm, this motor delivers robust power and efficiency. It's compatible with 3-4S LiPo batteries and is recommended for aircraft weighing between 1100g to 1900g.
The motor features a 5mm steel shaft, precision NSK bearings, and a high-temperature resistant windings, ensuring durability and optimal performance. Its lightweight design at 147g makes it suitable for various aerial applications.
KV1000
| Stator Diameter | 28mm | Rotor Diameter | 35mm |
|---|---|---|---|
| Stator Thickness | 20mm | Body Length | 42mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 3-4S |
| No.of Rotor Poles | 14 | ESC | 60-80A |
| Motor Kv | 1000 | Recommended Prop(inch) | 4S(APC11*5.5\APC11*8) 3S(APC12*6\13*6.5) |
| No-load current | 1.7A/10V | Weight for aerobatics airplane | 1400g-1900g (3S APC13*6.5\ APC 12*6\ APC 12*8) (4S APC11*5.5\APC11*7\APC11*8) |
| Motor Resistance | 18.5mΩ | Weight for 3D airplane | 1100g-1500g (3S APC13*6.5\APC13*8) |
| Max Continuous Current | 70A/1min | ||
| Max Continuous Power | 1036W | ||
| Weight | 147g |
