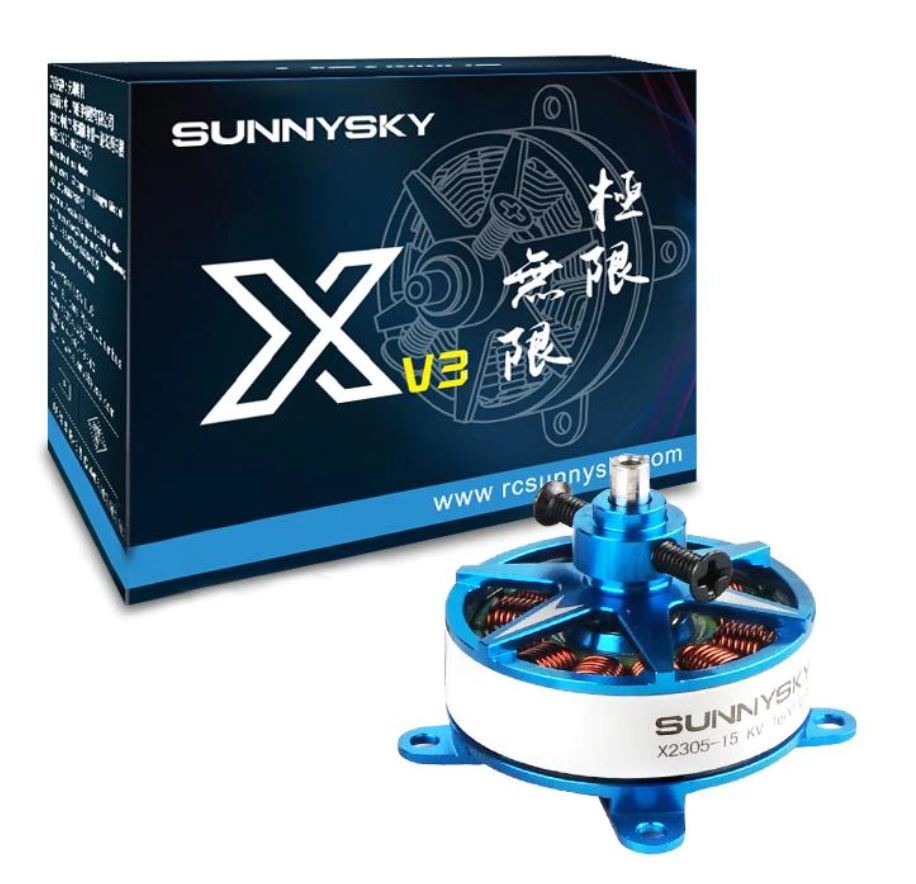

SunnySky X Series X2305-1450kv V3 Brushless Motors

Product Overview

Experience the power and precision of the SunnySky X Series V3 X2305 Brushless Motor 1450KV. Designed for enthusiasts and professionals alike, this motor offers superior efficiency and strong thrust, making it an ideal choice for indoor airplane power. With a lightweight design and robust performance, this motor ensures high efficiency with minimal power loss, perfect for advanced model aircrafts.

Key Features

• High Efficiency: Boasts superior efficiency with a high thrust-to-weight ratio, ensuring optimal performance in flight.
• Durable Design: Crafted with precision, featuring neat windings, imported bearings, and a T-shape shaft for enhanced durability and stability.
• Lightweight: Weighing just 25g, this motor offers strong power without adding unnecessary weight to your model.
• Versatile Compatibility: Suitable for 2-3S LiPo batteries, with recommended props including GWS8043, GWS9047, GWS9050, and GWS1047.
• Advanced Construction: Features 12 stator slots, 14 rotor poles, and a rotor diameter of 28mm, engineered for peak performance.
• Efficient Power Use: Max continuous power of 168W and a no-load current of 0.5A at 10V, delivering consistent power output.

  KV1450

  No.of Stator Slots	12	Rotor Diameter	28mm
  No.of Rotor Poles	14	Shaft Diameter	3mm
  Motor Kv	1450	Body Length(Without Shaft)	20.5mm
  No-load current	0.5A/10V	Body Length	23.6mm
  Motor Resistance	120mΩ	Max Lipo Cell	2-3S
  Max Continuous Current	20A/30s	ESC	10-20A
  Max Continuous Power	168W	Recommended Prop(inch)	GWS8043/GWS9047/GWS9050/GWS1047
  Weight	25g
