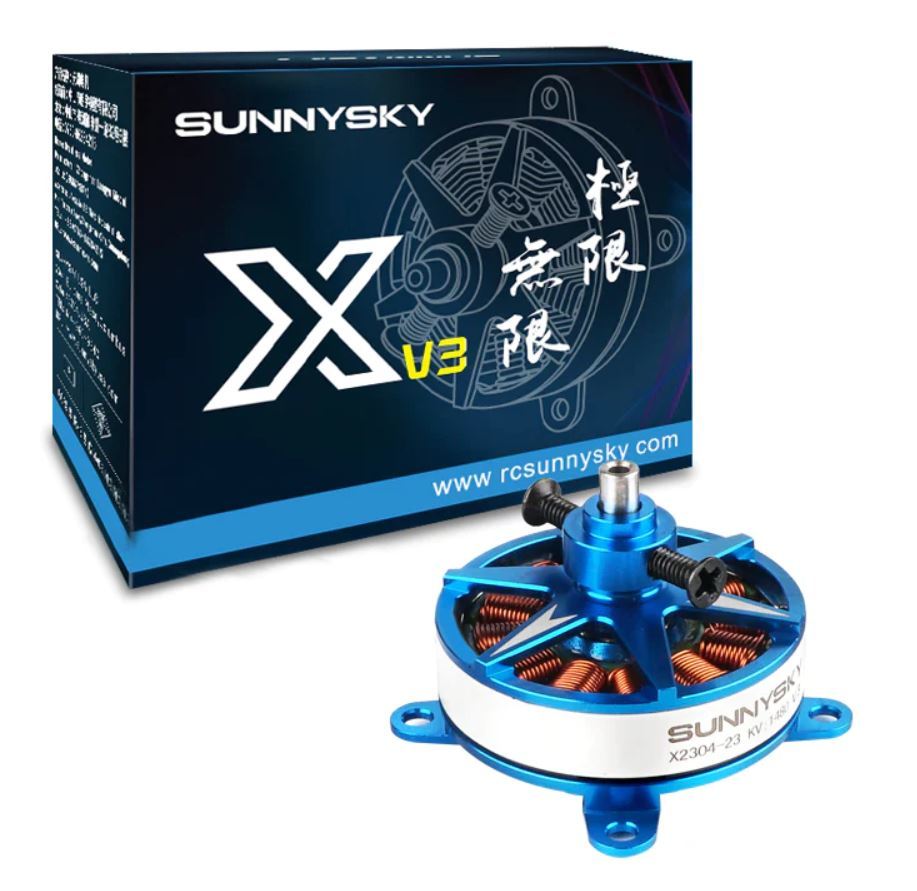

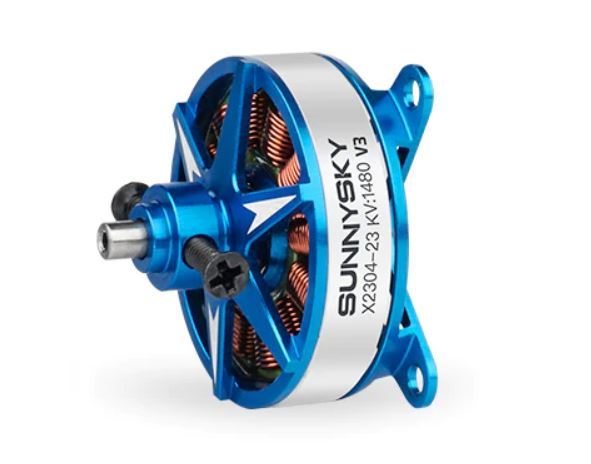

SunnySky X Series X2304-1480kv V3 Brushless Motors

Product Overview:
Introducing the SunnySky X Series V3 X2304 Brushless Motor 1480KV—a top-tier choice for indoor airplane power. Engineered for exceptional performance, this third-generation motor boasts a unique blend of lightweight design and powerful thrust. Whether you’re a seasoned pro or just getting started, this motor is your ticket to superior efficiency and strong power, making it the perfect companion for high-flying adventures.

Key Features:

• High Performance: With a Kv rating of 1480, this motor provides robust power and speed, ensuring your indoor airplane performs at its peak.
• Lightweight Design: Weighing only 20.2g, the X2304 V3 maintains a perfect balance between weight and power, ideal for lightweight models.
• Superior Efficiency: Engineered for optimized efficiency with a maximum continuous power of 120W, this motor reduces energy loss, keeping your aircraft flying longer.
• Precision Engineering: Equipped with imported bearings, neat windings, and a T-shape shaft, every detail is designed to enhance durability and performance.
• Versatile Compatibility: Compatible with a 2-3S Lipo Cell and requiring only a 10-15A ESC, this motor is versatile and adaptable to various setups.
• Aerodynamic Aesthetics: The third-generation combination of blue and white gives your model a sleek, professional look that complements its high performance.

  KV1480

  No.of Stator Slots	12	Rotor Diameter	28mm
  No.of Rotor Poles	14	Shaft Diameter	3mm
  Motor Kv	1480	Body Length(Without Shaft)	19.1mm
  No-load current	0.4A/10V	Body Length	22.2mm
  Motor Resistance	190mΩ	Max Lipo Cell	2-3S
  Max Continuous Current	15A/30s	ESC	12-15A
  Max Continuous Power	130W	Recommended Prop(inch)	GWS8043/GWS8060/GWS9047/GWS9050
  Weight	20.2g
