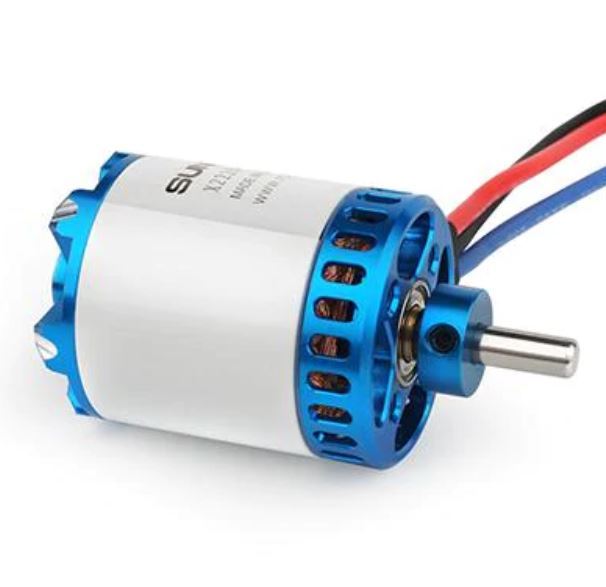

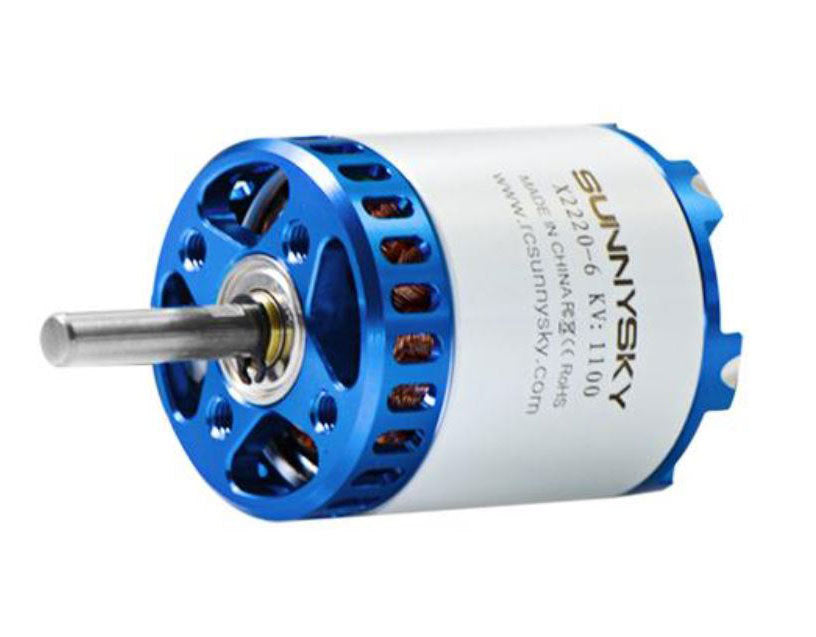

SunnySky X Series X2220-1400kv V3 Brushless Motor
SunnySky X Series X2220-1400kv V3 Brushless Motor
Regular price
$30.00
Regular price
Sale price
$30.00
Quantity
Couldn't load pickup availability
The SunnySky X Series V3 X2220 Brushless Motor 2200KV is engineered for high-performance RC models, delivering exceptional power and efficiency. Designed with a stator diameter of 22mm and a stator thickness of 20mm, this motor ensures optimal performance for aerobatic airplanes and 3D flight maneuvers.
Its robust construction includes 12 stator slots and 14 rotor poles, providing smooth and reliable operation. Compatible with 3S LiPo batteries, the motor supports a continuous current of up to 45A for 30 seconds, achieving a maximum continuous power output of 745W. Weighing approximately 85g, the X2220 is suitable for various RC aircraft applications.
KV1400
| Stator Diameter | 22mm | Rotor Diameter | 27.7mm |
|---|---|---|---|
| Stator Thickness | 20mm | Body Length | 38mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 3S |
| No.of Rotor Poles | 14 | ESC | 40-60A |
| Motor Kv | 1400 | ESC | APC9045/APC9047/APC9060/APC8060 |
| No-load current | 1.5A/10V |
Weight for aerobatics airplane
|
1000g (3S APC9060\APC9047\APC9045) (4S APC8060) |
| Motor Resistance | 29mΩ | Weight for 3D airplane | 750-850g (3S APC9047\APC9060) |
| Max Continuous Current | 45A/30s | ||
| Max Continuous Power | 745W | ||
| Weight | 85g |
