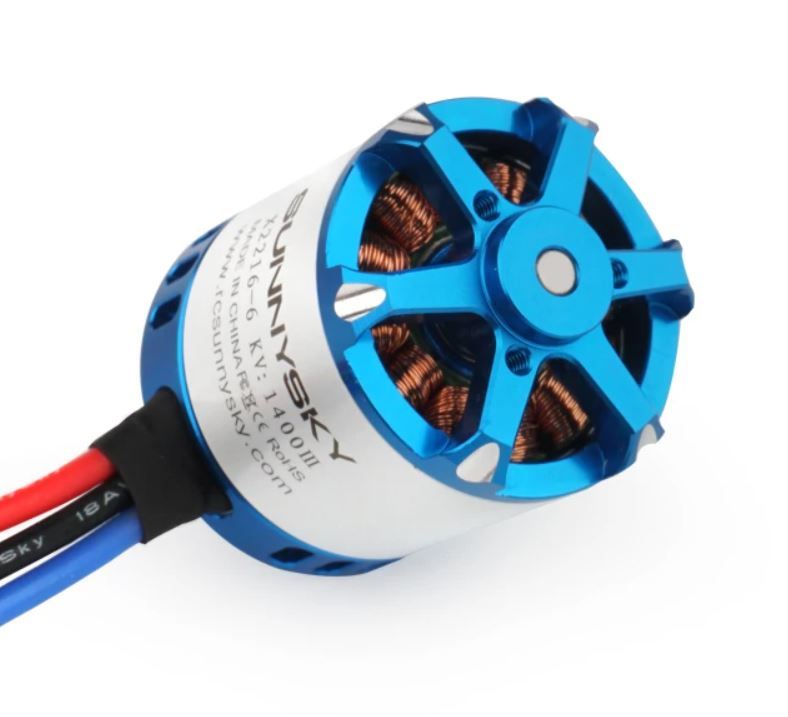

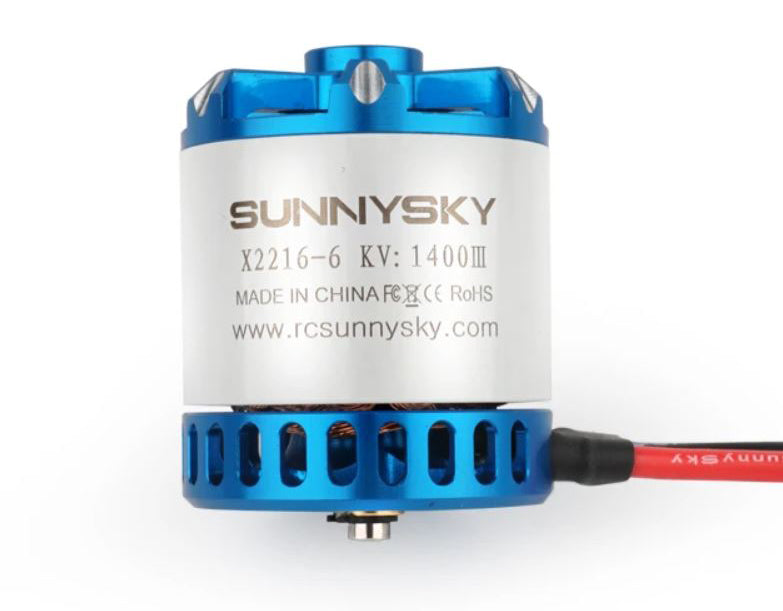

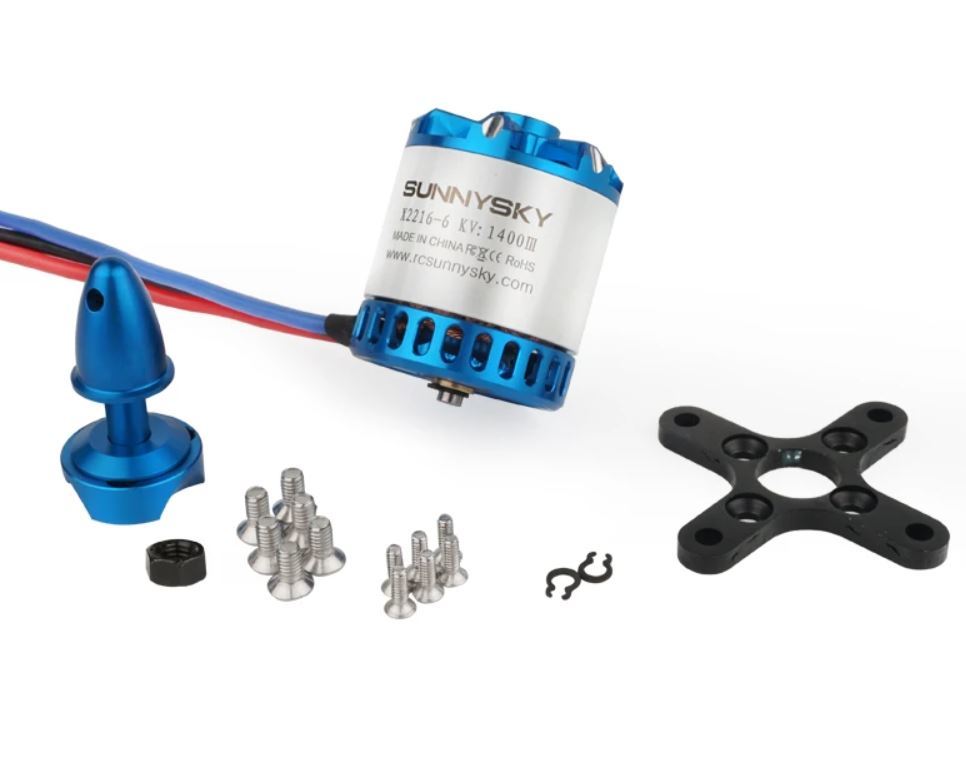

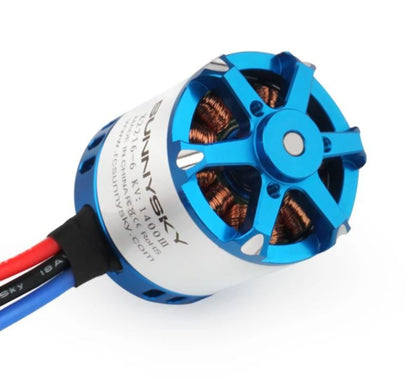

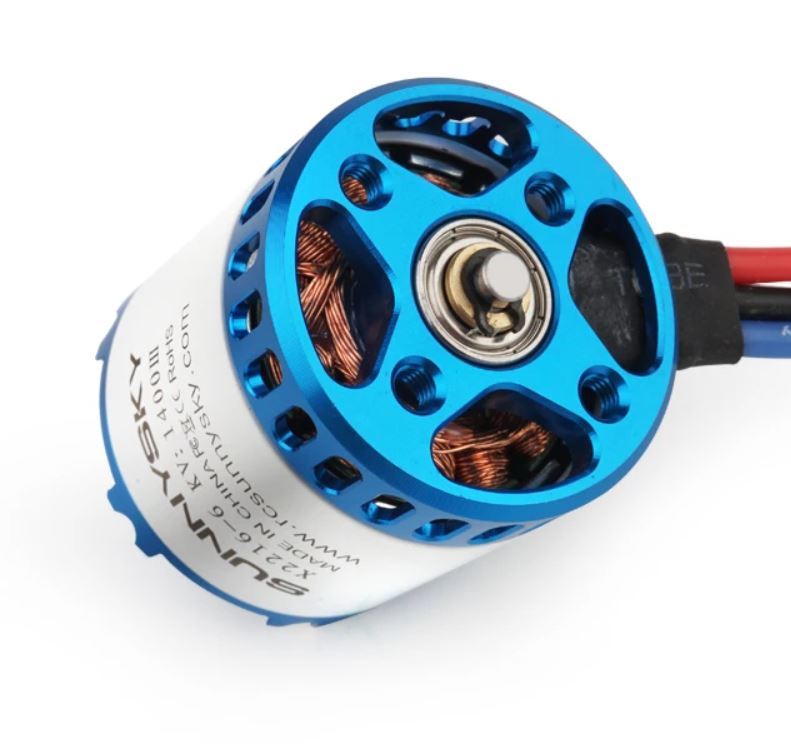

SunnySky X Series X2216-1400kv V3 Brushless Motor Short Shaft
SunnySky X Series X2216-1400kv V3 Brushless Motor Short Shaft
Regular price
$25.00
Regular price
Sale price
$25.00
Quantity
Couldn't load pickup availability
The SunnySky X Series V3 X2216 1400KV Brushless Motor is meticulously engineered for RC aircraft enthusiasts seeking superior performance and reliability. Its CNC-milled, hollow design ensures efficient heat dissipation and reduces overall weight, enhancing flight dynamics.
The motor features a robust 420 stainless steel solid shaft, providing exceptional strength and resistance to bending or breaking. Constructed with high-strength 6061-T6 aviation-grade aluminum alloy for the top and bottom caps, it guarantees durability and consistent performance.
Equipped with imported NMB bearings from Japan, the X2216 motor offers an extended lifespan with smooth and quiet operation. Each coil is meticulously hand-wound, ensuring tightness and neatness, which contributes to increased continuous power output. This short shaft version is ideal for small outdoor foamy airplanes, including popular park flyers up to 3-4 lbs and 120mm wingspan 3D foamies.
KV1400
| Stator Diameter | 22mm | Rotor Diameter | 27.7mm |
|---|---|---|---|
| Stator Thickness | 16mm | Body Length | 34mm |
| No.of Stator Slots | 12 | Max Lipo Cell | 3-4S |
| No.of Rotor Poles | 14 | ESC | 40-50A |
| Motor Kv | 1400 | Recommended Prop(inch) | APC8060/APC9047/APC9045 |
| No-load current | 1.2A/10V | Weight for aerobatics airplane | 850g(3S 9060\9047\9045) (4S 8060) |
| Motor Resistance | 32.2mΩ | Weight for 3D airplane | 750g(3S 9047) |
| Max Continuous Current | 50A/30s | ||
| Max Continuous Power | 740W | ||
| Weight | 71g |
