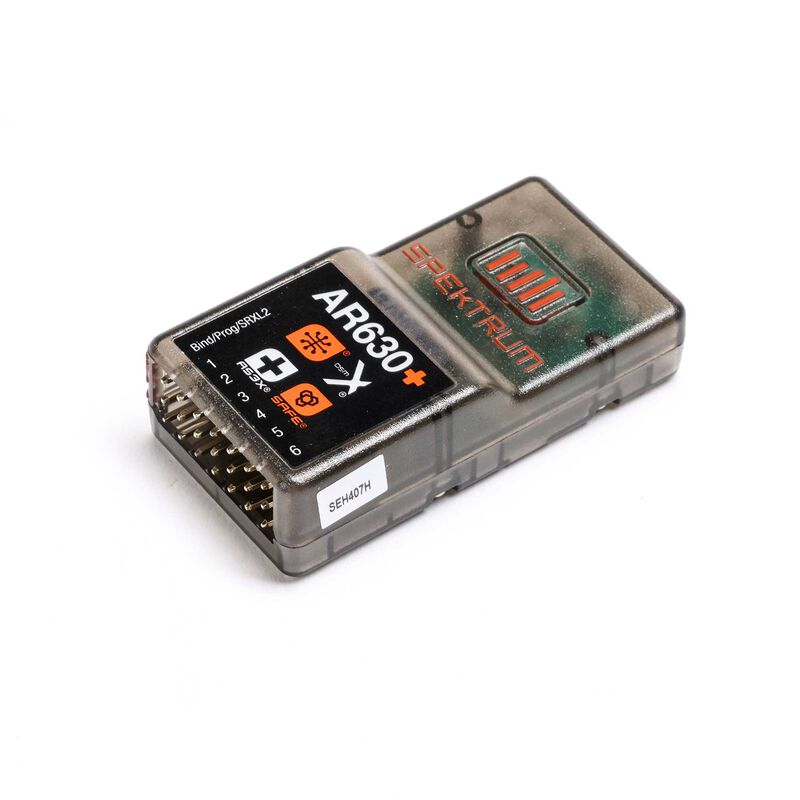

Spektrum AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver SPM-1030

The Spektrum™ AR630+ 6 Channel AS3X+ Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. The AR630+ is a full-range 6-channel receiver with built-in AS3X+® and SAFE® stabilization. The all-new AS3X+ stabilization algorithm creates better flight performance, improved sensor accuracy and data rate, and provides pilots with a generationally different feel compared to AS3X. There is no delay in control response or limits on control throws. You’ll simply feel like you’re flying an expertly tuned model that does exactly what you want. *Please note – Using this receiver in turbine-powered aircraft models is not recommended

Spektrum AR630+ 6-Channel AS3X+ & SAFE Receiver Overview

The AR630+ features fly-by-range telemetry, a bind button for easy binding with no plugs necessary, SmartSafe technology, Hold Last, and preset failsafe types set through Forward Programming. It also features Smart Telemetry support and Smart Throttle support. Additionally, Smart Model Files allow BNF models to be stored on the receiver to automatically set the model at bind.

With Smart Technology, the normal servo connector delivers the throttle signal to the ESC, and the ESC sends telemetry data like voltage and current back to the receiver. The AR630+ receiver throttle port (Channel 1 port only) will automatically detect when a Smart-compatible ESC is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are compatible with the AR630+ receiver for Smart Technology features.

For Smart to function, you must have a Smart ESC paired with a Smart Telemetry receiver and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. See www.spektrumrc.com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR630+ receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.

Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, non-computer transmitters.

• Antenna-less design for easy installation and increased performance
• Built-in AS3X+ Stabilization System with SAFE flight envelope protection
• AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
• Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need for modules, links, and wires
• DSMX protocol receiver with DSM2 backward compatibility

Spektrum AR630+ 6-Channel AS3X+ & SAFE Receiver Features

• Streamlined, end-pin design in a lightweight hard case
• Bind button allows for easy binding and eliminates the need for a bind plug

• Fly-by range telemetry support
• Standard servo connectors

NEXT GENERATION IN-FLIGHT STABILIZATION

The all-new AS3X+ features a vastly improved stabilization algorithm that experts throughout the hobby have rigorously tested. The system is even easier to tune and can be easily optimized for any type of aircraft you fly. Never again spend hours tuning and tweaking until your aircraft is locked in. We have been able to set up most aircraft in less than five minutes, including the first flight tuning.

Key AS3X+ improvements include:

• Stop Lock and Release Rate parameters
• Heading Hold improvements
• Improved gyro filtering
• Canard and Thrust Vectoring support

Specifications:
Application: Air

Band: 2.4GHz

Bind Method: Bind Button

Channels: 6

Dimensions: 1.85 x 0.98 x 0.51 in (47 x 25 x 13 mm)

Failsafe: Yes

Forward Programming: Yes

Input Voltage: 3.5 - 9V

Integrated Variometer: No

Modulation: DSMX/DSM2

Product Application

Product Height: 0.51" (13 mm)

Product Length: 1.85" (47 mm)

Product Weight: 0.34 oz (9.5 g)

Product Width: 0.98" (25 mm)

Range: Full

Resolution: 2048

Serial Out: SRXL2

Technology: AS3X+, SAFE

Telemetry: Yes

Telemetry Range: Full
