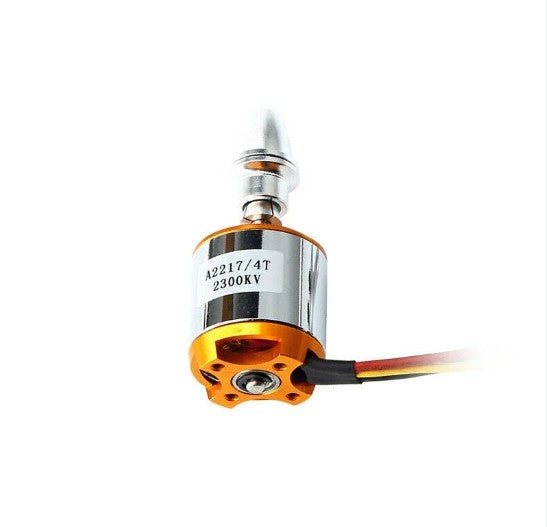

2217/4 2300kv Brushless Motor (Park 425 equiv.)

Number of Cells: 2-3s lipo; 6-10 cell NiMh

● Max Efficiency Current: 8-22A (>70%)
● No Load Current (10v): 1.6A
● Max Current: 30A/60s
● Max Efficiency: 80%
● Internal Resistance: 100mΩ
● Shaft Size: 4.0mm
● Poles: 8
● Max Watts: 300-400W
● Weight: 78g
● Motor Dimensions: 27.7x33 (mm)
● Motor bolt pattern (back of motor): 16mm x 19mm (hole to hole)
● X-mount hole pattern: 32mm x 32mm (hole to hole)
● Minimum recommended ESC: 30A-40A
● Recommended model weight: 300-1000g (11-36 oz.)
